Main Generator Amps Sensor Equipment

Back

Traction Control

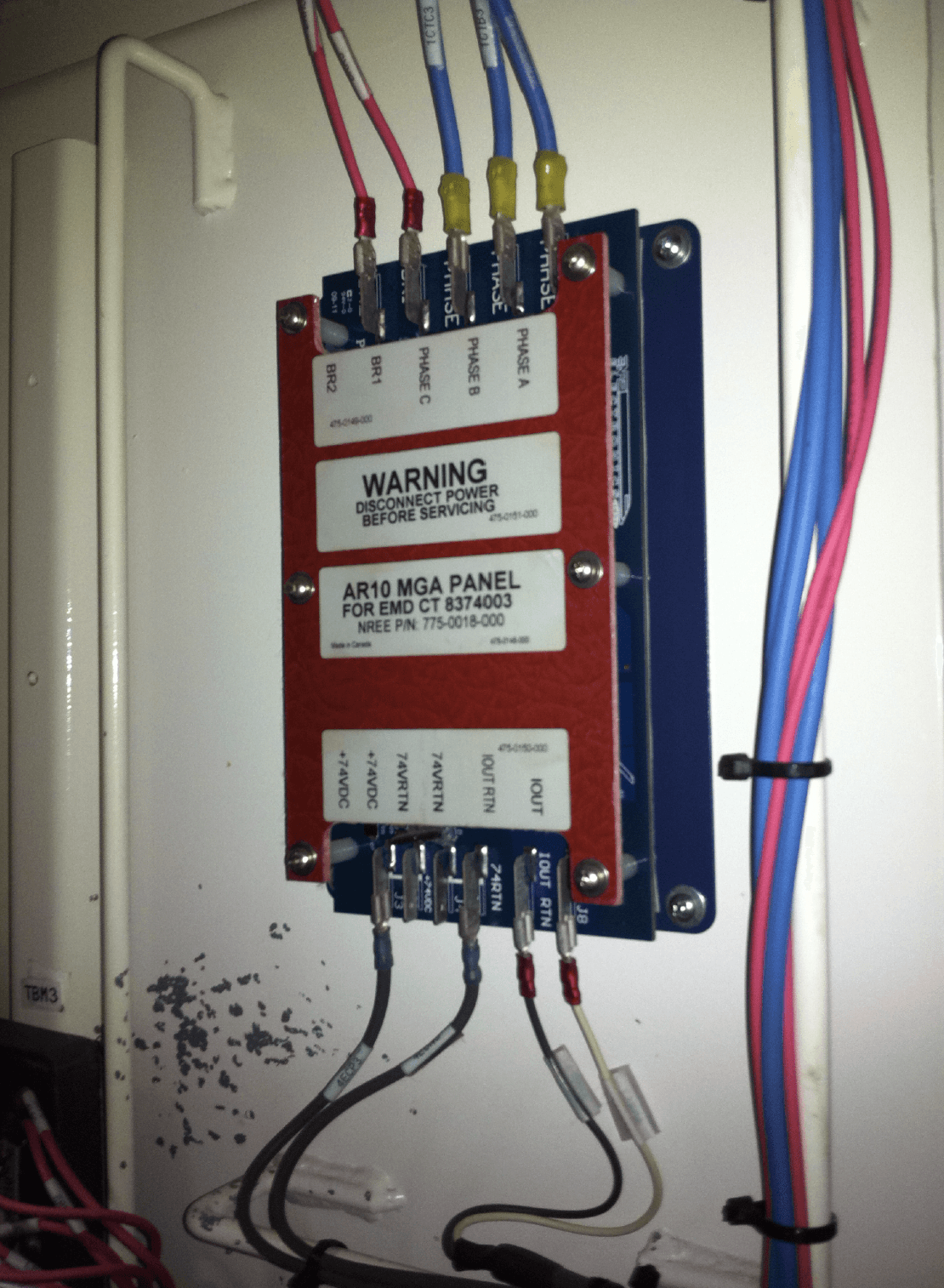

This sensor uses the main generator internal current transformers to measure current output of the AR10, AR11, and AR15 main generators.

Normal Operating Voltage: 40-80 Vdc
Output Signals: 4 to 20 mA, 2 wire connect
Operating Temperature: -40°F to 158°F

Normal Operating Voltage: 40-80 Vdc
Output Signals: 4 to 20 mA, 2 wire connect
Operating Temperature: -40°F to 158°F

Normal Operating Voltage: 40-80 Vdc
Output Signals: 4 to 20 mA, 2 wire connect
Operating Temperature: -40°F to 158°F

Part Number	Motoring	Braking
775-0018-000 (AR10, AR15)	8000 amps at 20 mA	1143 amps at 20 mA
775-0035-000 (AR11)	5000 amps (MGA output/2) at 20 mA	1874 amps at 20 mA

Part Number	Motoring	Braking
775-0018-000 (AR10, AR15)	8000 amps at 20 mA	1143 amps at 20 mA
775-0035-000 (AR11)	5000 amps (MGA output/2) at 20 mA	1874 amps at 20 mA

Part Number	Motoring	Braking
775-0018-000 (AR10, AR15)	8000 amps at 20 mA	1143 amps at 20 mA
775-0035-000 (AR11)	5000 amps (MGA output/2) at 20 mA	1874 amps at 20 mA
