Power Electronics

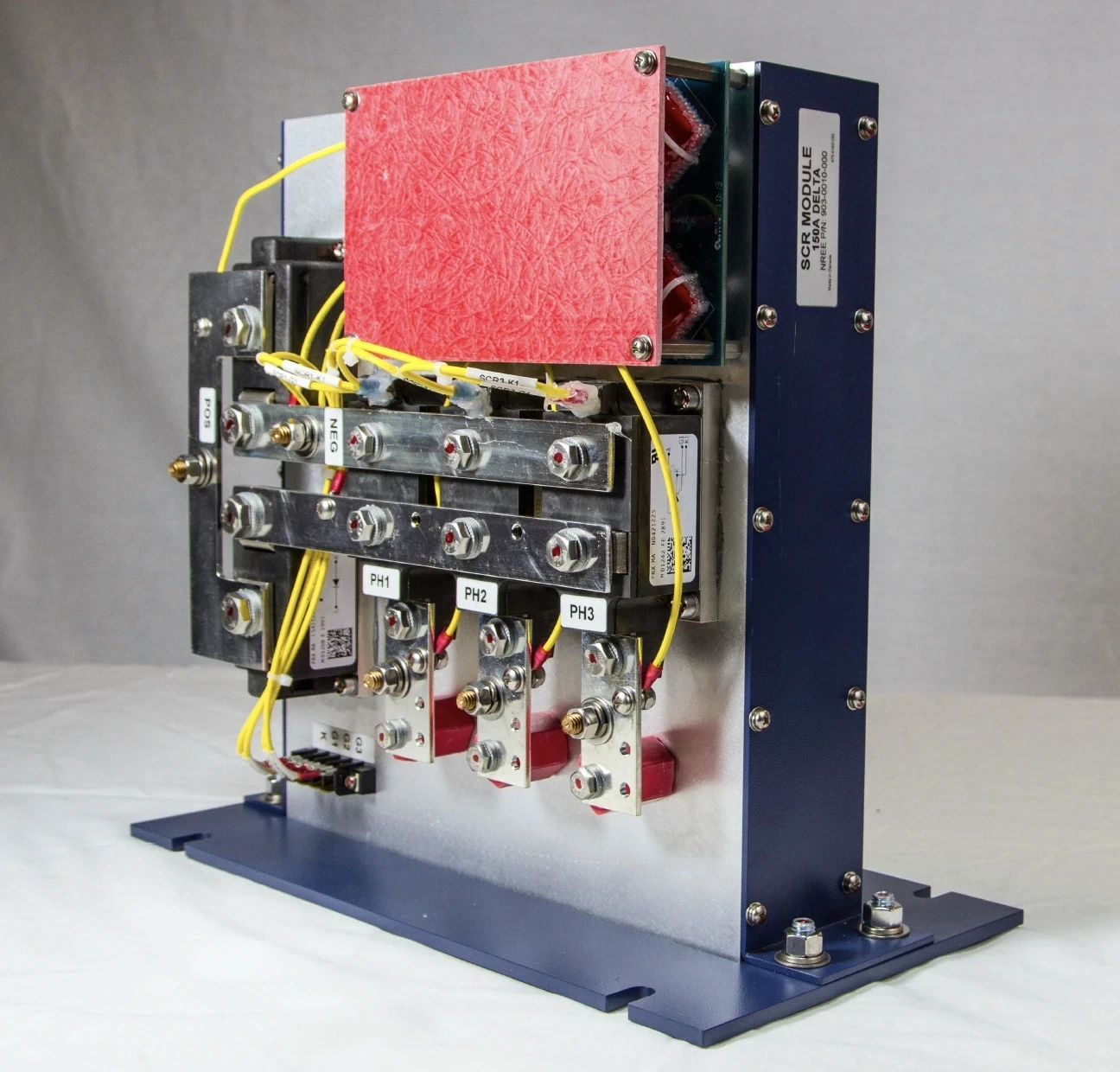

SCR Module
The SCR consists of a three-phase bridge rectifier circuit and transient suppression circuitry which allows control of the output current produced by the Main Generator
Part Number
903-0010-000
Basic Specs
Storage Temperature: -40°F to 140°F (-40°C to 60°C)
Operating Temperature: -40°F to 122°F (-40°C to 50°C)
Input Signal: D14 alternator three-pass
Output Signal: 0-150 amps DC
