Shunt Interface Panel

Back

Traction Control

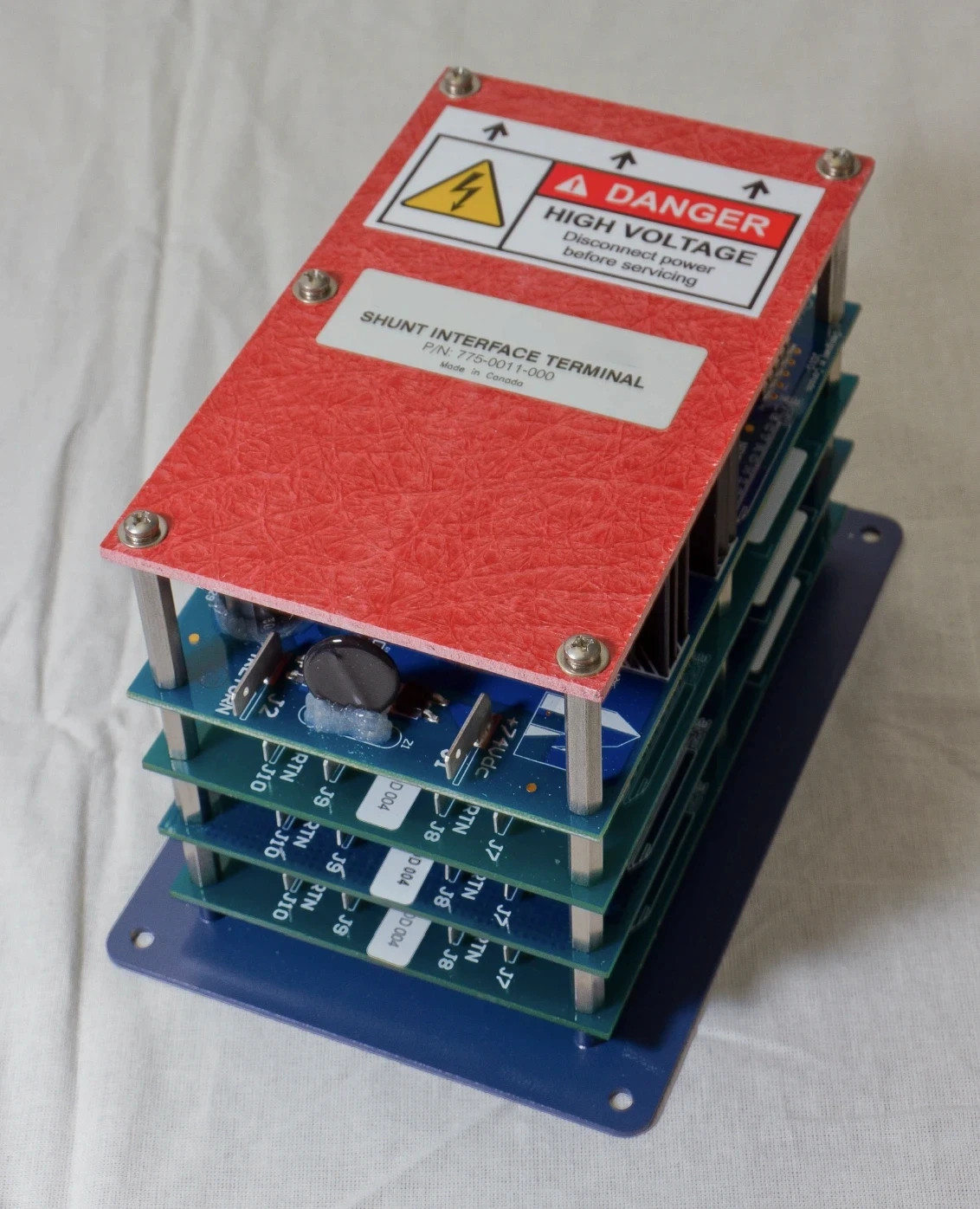

The Shunt Interface Panel is used to interface with up to six 200mV/2000amp shunts, which are used to monitor various current sources on the locomotive.

Part Number

775-0011-000

Part Number

775-0011-000

Part Number

775-0011-000

Basic Specs

Normal Operating Voltage: 40-80 Vdc
Input Signals: Six 200 mV/2000 amp channels
Output Signals: Six 4 to 20 mA, 2 wire connection (125 amps/mA)
Operating Temperature: -40°F to 158°F (-40°C to 70°C)

Shunt Interface Panel
