Traction Motor Current Shunt Panel

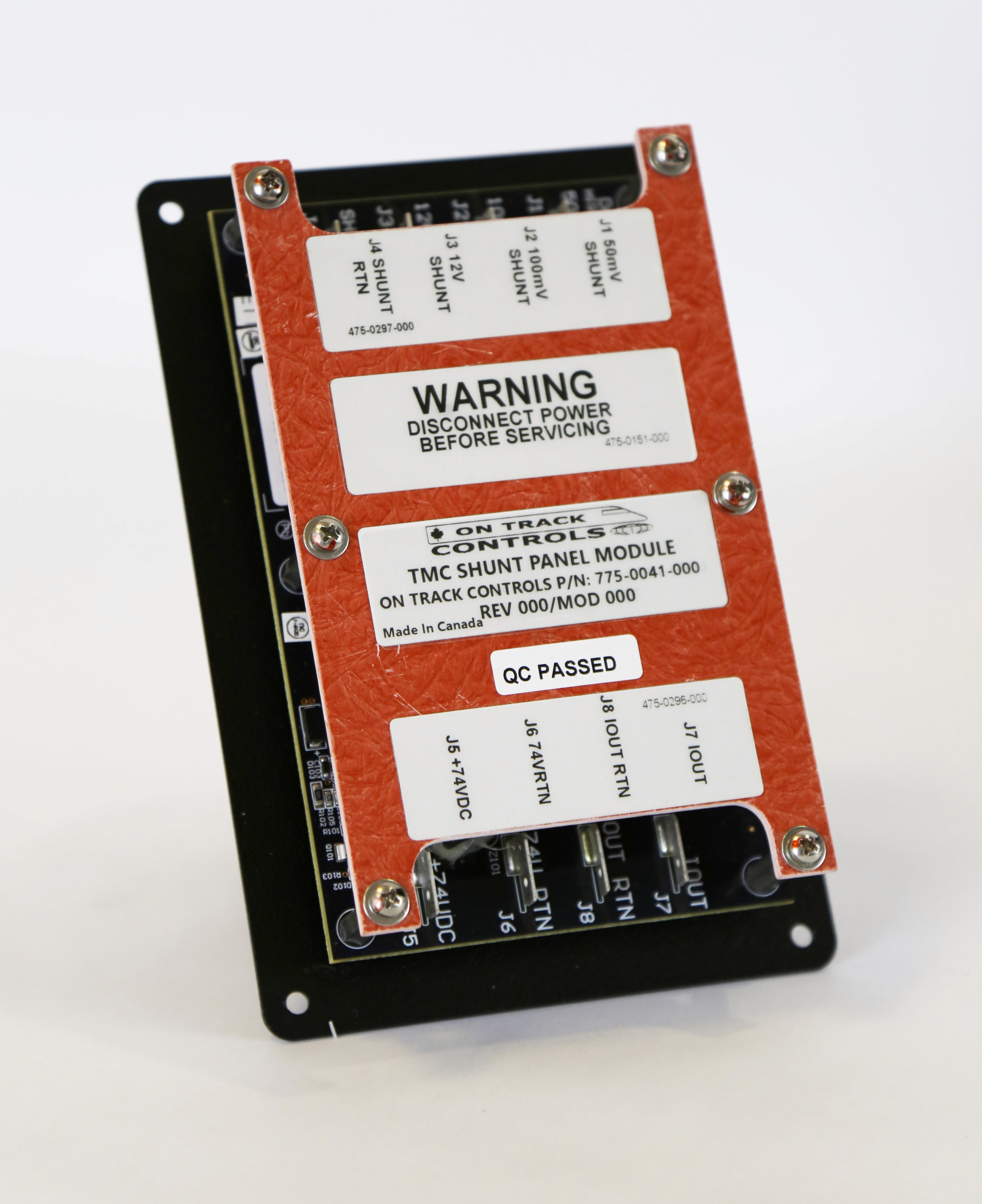

The Traction Motor Current Shunt Panel is the interface to an on-board Traction Motor Current Shunt (50mV, 120mV, and 12V) and converts the shunt voltage signal to an isolated 4-20mA current loop output that is collected by an event recorder.

Part Number

775-0041-000

Part Number

775-0041-000

Part Number

775-0041-000

Basic Specs

Normal Operating Voltage: 40 – 80 Vdc
Output Signals: 4 to 20 mA, 2 wire connect
Operating Temperature: -40°F to 158°F (-40°C to 70°C)

Basic Specs

Normal Operating Voltage: 40 – 80 Vdc
Output Signals: 4 to 20 mA, 2 wire connect
Operating Temperature: -40°F to 158°F (-40°C to 70°C)

Basic Specs

Normal Operating Voltage: 40 – 80 Vdc
Output Signals: 4 to 20 mA, 2 wire connect
Operating Temperature: -40°F to 158°F (-40°C to 70°C)

Part Number Details

Scaling:
For 50mV shunt: 0-50mV = 4 -20mA
For 100mV shunt: 0-100mV = 4-20mA
For 12V shunt: 0-12V = 4-20mA

Part Number Details

Scaling:
For 50mV shunt: 0-50mV = 4 -20mA
For 100mV shunt: 0-100mV = 4-20mA
For 12V shunt: 0-12V = 4-20mA

Part Number Details

Scaling:
For 50mV shunt: 0-50mV = 4 -20mA
For 100mV shunt: 0-100mV = 4-20mA
For 12V shunt: 0-12V = 4-20mA

Traction Motor Current Shunt Panel

Part Number

Part Number

Part Number

Basic Specs

Basic Specs

Basic Specs

Part Number Details

Part Number Details

Part Number Details
